Deploy Your Image with ECS

The Amazon ECS first-run wizard guides you through the process of getting started with Amazon ECS using the Fargate launch type. The wizard gives you the option of creating a cluster and launching your application. It is a great way to get started with deploying your application with Amazon ECS. We will use the wizard to deploy our NPM application Docker image from Artifactory.

  1. Go to the Amazon ECS console first-run wizard.

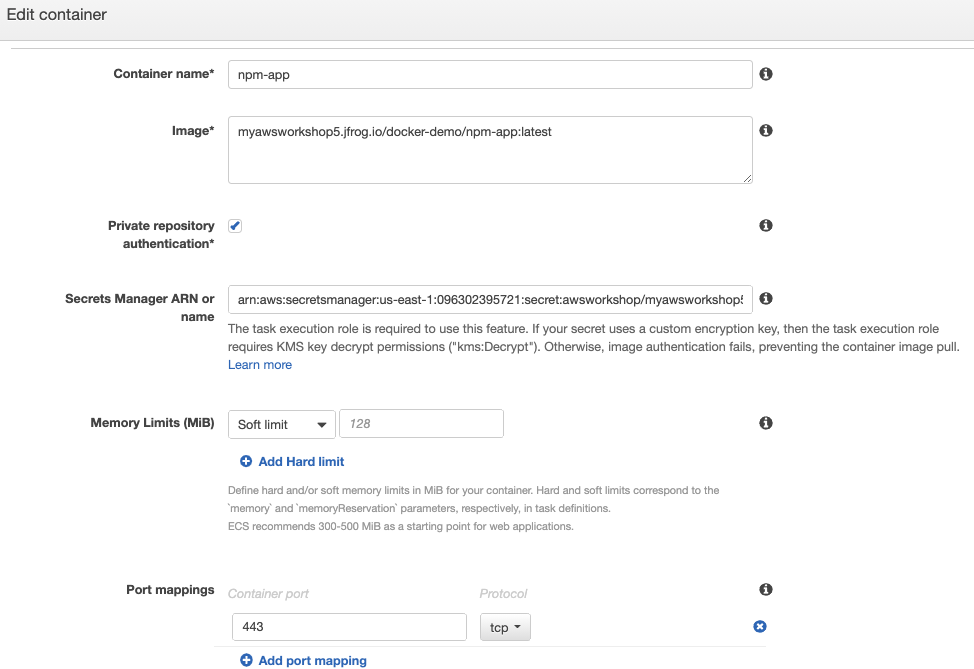

  2. In the Container definition section, click Configure on the custom option.
  3. For the container name, specify npm-app.
  4. For the Image specify the Docker image name for our npm-app. This should be ${domain}/docker-demo/npm-app:latest. domain is the JFrog Platform instance domain (server name.jfrog.io).
  5. Check Private repository autentication.
  6. For Secrets Manager ARN paste the Secrets ARN from the Secrets Manager step.
  7. For port mapping, specify 443. ECS Container
  8. Click Update.

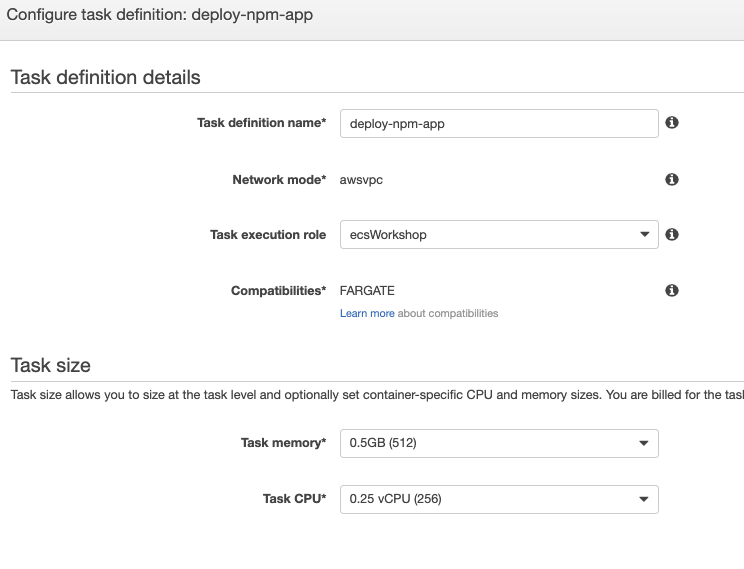

  9. Click Edit on the Task definition.
  10. for the Task definition name, specify deploy-npm-app.
  11. For the Task execution role specify the ECS role that you created, ecsWorkshop. ECS Task Definition
  12. Click Save.
  13. Click Next.

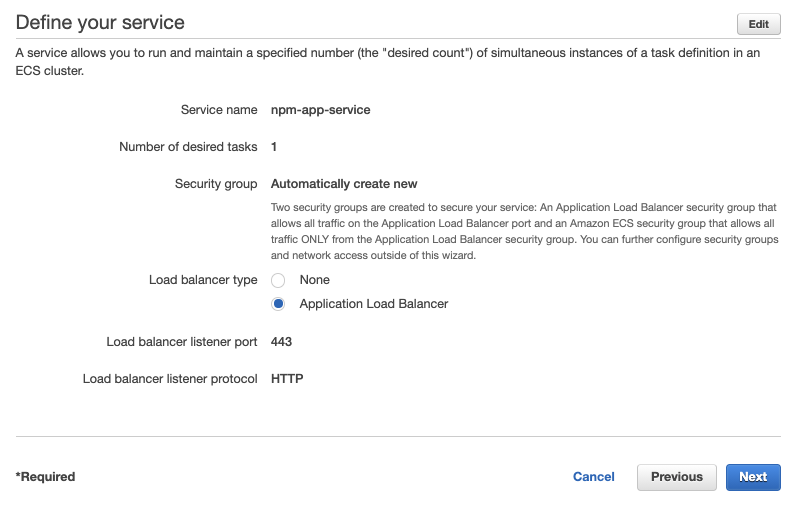

  14. For Define your service, ensure Application Load Balancer is selected and port 443 is listed. ECS Service
  15. Click Next.
  16. For Configure your cluster, specify npm-app-cluster for your Cluster name.
  17. Click Next.
  18. Review your configuration.
  19. Click Create after you validated your configuration.

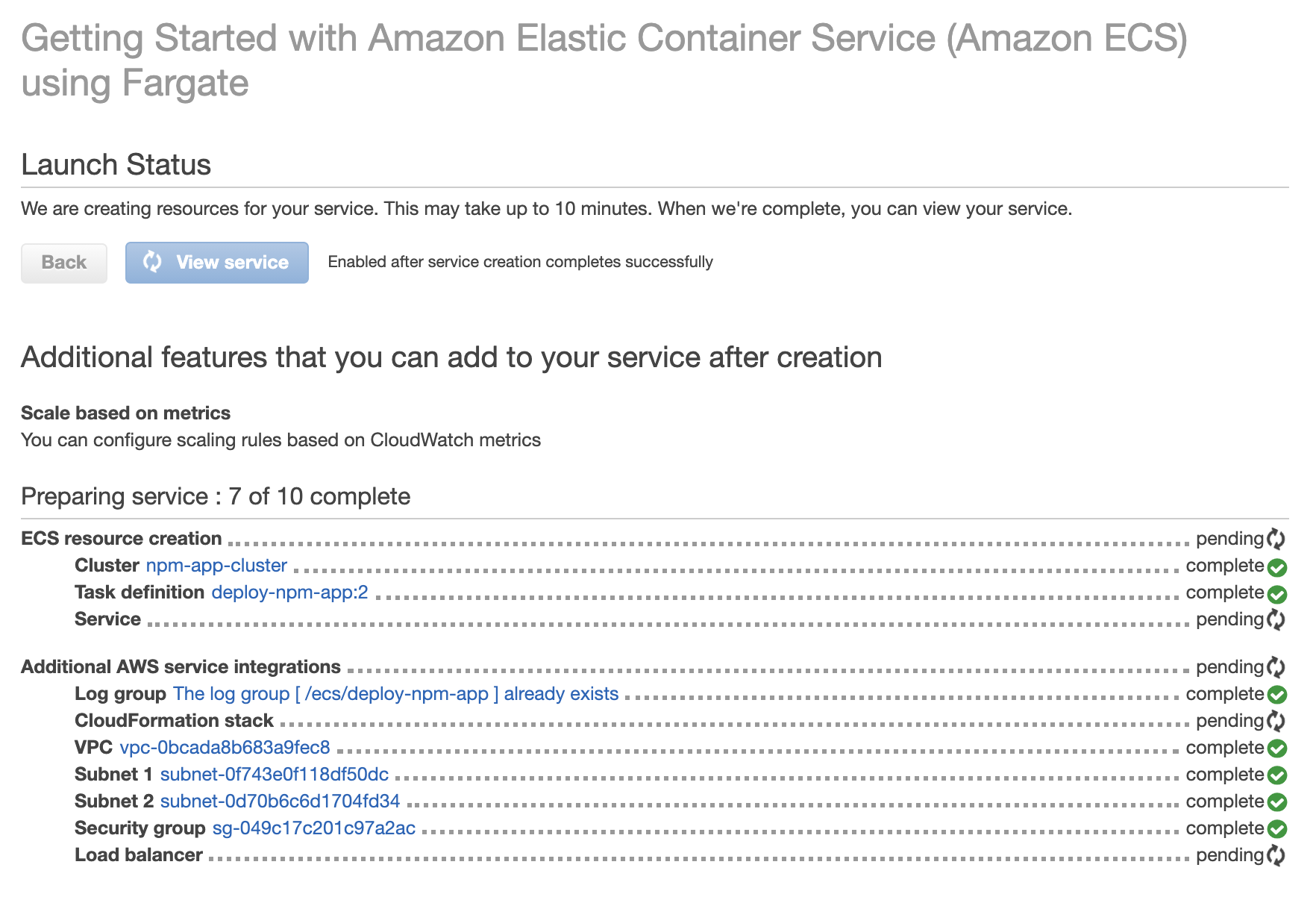

  20. Wait for your AWS services to be completed. ECS Fargate Services

It will take a few minutes for Amazon ECS to create your VPC, create a cluster, create services and deploy your image. When that is complete, we can view our application!

What is Amazon ECS first-run wizard doing?
